Proxmox homelab

I built JHomelab on an old Alienware laptop so I could work with a real hypervisor, run Linux services and experiment with networking outside my everyday computer. The project brought together the Linux, virtualization and networking work I had been doing in class.

I installed Proxmox VE, created the guest machines, configured the lab network and added a Docker service host. The result is an ongoing personal lab: two service guests start automatically while desktop and security-lab guests are reserved for individual sessions. My work centers on infrastructure setup and administration; the deployed applications are existing software projects.

How the lab fits together

The home router provides the upstream connection. A range extender acts as the wireless bridge into the lab, with its SSID broadcast disabled. Proxmox runs directly on the laptop and provides storage, guest management and virtual networking. The physical access network remains flat; a managed switch and VLAN work are future additions.

Host and storage

The September check recorded Proxmox VE 9.2.20, kernel 7.0.14-17-pve, on an Alienware 15 R3. The hardware places practical limits on how many guests can run together.

Scroll horizontally to read the full table on a narrow screen.

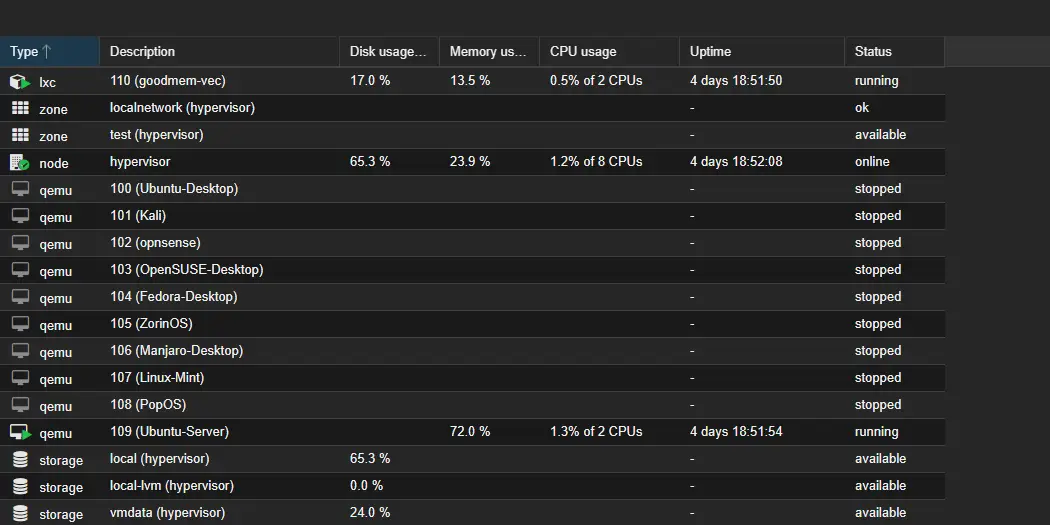

The inventory assigns about 47 GB to the VMs plus 4 GB to the LXC container, using rounded values. That exceeds physical RAM. VM 109 and CT 110 were the two running guests and both had automatic startup enabled; VMs 100–108 were stopped. I use the experimental guests for individual sessions, within the host's available resources.

All three storage pools were active in the check. Their recorded usage was 65.33% for local, 0.01% for local-lvm and 23.96% for vmdata. Available capacity did not resolve the separate boot-SSD health and backup concerns described below.

Linux guests and container services

The lab has ten configured VMs and one LXC container. The experimental group includes Ubuntu Desktop, Kali, openSUSE, Fedora, Zorin OS, Manjaro, Linux Mint and Pop!_OS, plus OPNsense. Separate guests let me try different Linux environments without changing my daily computer. OPNsense is a single-NIC gateway project in progress, not the established boundary between the service and lab networks.

The service tier is split between a full virtual machine and an unprivileged Linux container:

Scroll horizontally to read the full table on a narrow screen.

Homepage, Uptime Kuma and Portainer responded at their documented endpoints. CT 110's container state and GoodMem API response were also checked. VM 109's operating-system release and Docker inventory remained unverified because of the guest-access problem described below.

Network configuration

I used Proxmox software-defined networking to create an experimental virtual network alongside the main LAN connection. The recorded configuration has zone test and VNet testnet. They are different objects: the zone contains the VNet, and the lab guests attach to the VNet.

Scroll horizontally to read the full table on a narrow screen.

IPAM mappings associate guest identifiers with assigned addresses. All nine lab VMs were stopped during the check, so guest DHCP and outbound connectivity remain untested.

Firewall policy and its limits

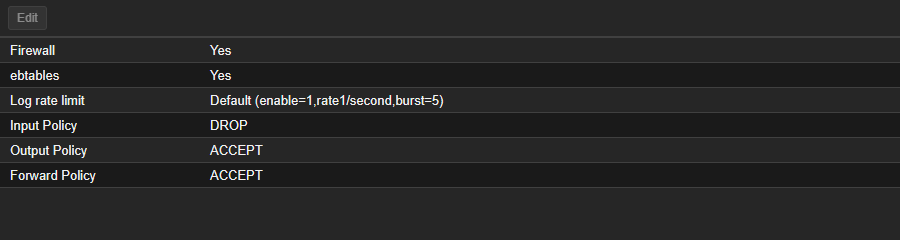

The datacenter firewall was enabled with seven accept rules covering lab traffic, DNS/DHCP and management access including ICMP, SSH and the Proxmox web interface. Input defaulted to DROP; output and forwarding defaulted to ACCEPT, so the policy allowed outbound and forwarded traffic by default.

The same check found three issues to resolve before expanding the network design:

• One rule's comment described internet access, while its destination was the home LAN.
• The nftables firewall was active, but legacy firewall status reported pending changes.
• Global IPv4 forwarding was 0, while forwarding on vmbr0 and testnet was 1.

The effect of these settings on live lab traffic remains untested. Checking guest DHCP, permitted egress and denied traffic is the next step before relying on the intended policy. Per-guest and per-network rules, service-guest migration and managed switching remain planned work.

Recorded validation

The September 22 check covered host health, the Proxmox interface and service responses:

Scroll horizontally to read the full table on a narrow screen.

The HTTPS probes accepted local self-signed certificates, leaving certificate trust unverified.

Unresolved operational findings

A passing SMART summary with persistent errors

The boot SSD's overall SMART result was PASSED, but the detailed counters recorded 24 offline-uncorrectable sectors, 3 reported-uncorrectable errors and 3 end-to-end errors. The September 22 values matched September 10, while recurring SMART alerts continued. Reading the aggregate result alone would have missed the warning.

No SSD repair or replacement was performed during the check, and the evidence does not establish a specific hardware root cause. The related backup inspection found no scheduled Proxmox backup jobs or local backup files; manual and off-host copies were not checked. The report also records backup=0 on VM 106's primary disk, a disk-level backup exclusion. No restore test was recorded.

The next step is to establish recoverable backups and review the SSD before disk work.

Responding services with incomplete guest access

VM 109's web applications responded while its guest agent reported not running. An SSH attempt from the trusted hypervisor reached authentication and was denied. This left the operating-system and Docker inventory inspection incomplete without establishing a service outage.

The cause is unresolved, and no repair has been verified. Authenticated access is needed to inspect the agent installation and service state, then check guest queries again.

GPU passthrough preparation

The laptop has a GTX 1070 Mobile alongside its integrated graphics. The September check found the NVIDIA GPU bound to vfio-pci and assigned in the configurations for VMs 100, 105, 107 and 108. Those guests were stopped; VM 109 had no GPU assignment.

The build journal also records IOMMU preparation and the GRUB setting pcie_acs_override=downstream. Guest GPU operation and hardware-accelerated transcoding remain untested; these host settings are a record of preparation, not a verified passthrough procedure. Jellyfin with GPU transcoding remains a roadmap item.

What I have learned

Services and infrastructure setups have failed on me multiple times. Working through those failures is the part that teaches me the most. Having a lab means I can try a setup, see what breaks and figure out what needs to change.

Next changes

The immediate operational follow-ups recorded in the health check are backup coverage, the SSD warning, guest observability and network-policy validation. The broader build roadmap includes replacing the wireless bridge with a wired connection, adding managed switching, extending SDN to the service guests, and working on reverse proxying, internal DNS and shared storage.

Nginx Proxy Manager, RustDesk Server, a NAS guest, SIEM/IDS tooling and GPU media services are planned additions. The existing OPNsense guest remains a work in progress.

Sources

• Build journal and guest inventory, September 22 revision: host, storage, service placement, SDN configuration and roadmap.
• Read-only health-check report, September 22: recorded results, access limits, storage warnings and untested behavior.
• Original guest-inventory capture and firewall-options capture: the historical images reproduced above.

The repository contains documentation and screenshots. Sanitized configuration exports, Compose definitions and a complete rebuild procedure are still missing.
